The controller is where the user interacts with
the garden by stepping (dancing) on the interactive velocity
sensitive tiles that light up in an assigned color when stepped
on.
|
| :: |
The controller will consist of 72+ tiles covering over
6 octaves |
| :: |
Tile size 12”x12”, 3” apart in all directions |
| :: |

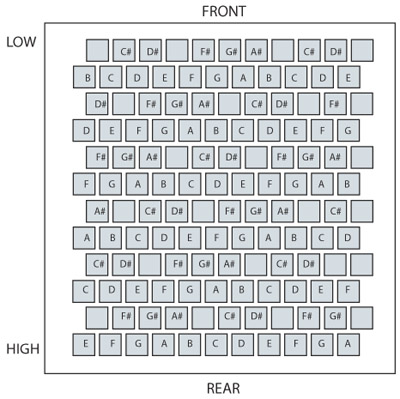

Note order is left to right starting with C and ends with
A |
| :: |
Up to 11 notes per line |
| :: |
Sharps and flats are located in a similar location to a keyboard
layout |
| :: |
Sounds can be changed to different voices assigned on the
synthesizer by stepping on any of the unmarked tiles within
the layout |
| :: |
Multiple tiles can be triggered simultaneously, allowing multiple
users to performance at once. |
| :: |
Layout can be changed to accommodate public space and/or for
creative purposes. |
| |
|
